Просунуті техніки для QAOA
Оцінка використання: 3 хвилини на процесорі Heron r2 (ПРИМІТКА: Це лише оцінка. Ваш час виконання може відрізнятися.)
Передумови
Цей ноутбук представляє просунуті техніки для покращення продуктивності Квантового Алгоритму Приблизної Оптимізації (QAOA) з великою кількістю кубітів. Дивіться підручник Розв'язування масштабних квантових задач оптимізації для ознайомлення з QAOA.
Просунуті техніки в цьому ноутбуці включають:
- SWAP стратегія з SAT початковим відображенням: Це спеціально розроблений прохід транспілера для QAOA, який використовує SWAP стратегію та SAT розв'язувач разом для покращення вибору того, які фізичні кубіти на QPU використовувати. SWAP стратегія використовує комутативність операторів QAOA для переупорядкування вентилів так, щоб шари SWAP вентилів могли виконуватися одночасно, таким чином зменшуючи глибину схеми [1]. SAT розв'язувач використовується для пошуку початкового відображення, яке мінімізує кількість SWAP операцій, необхідних для відображення кубітів у схемі на фізичні кубіти на пристрої [2] .
- CVaR функція вартості: Зазвичай очікуване значення гамільтоніана вартості використовується як функція вартості для QAOA, але як було показано в [3] , фокусування на хвості розподілу, а не на очікуваному значенні, може покращити продуктивність QAOA для комбінаторних задач оптимізації. CVaR досягає цього. Для заданого набору вимірювань з відповідними значеннями цільової функції розглянутої задачі оптимізації, Умовне Значення під Ризиком (CVaR) з рівнем довіри визначається як середнє найкращих вимірювань [3]. Таким чином, відповідає стандартному очікуваному значенню, тоді як відповідає мінімуму з даних вимірювань, а є компромісом між фокусуванням на кращих вимірюванн ях, при цьому все ще застосовуючи деяке усереднення для згладжування ландшафту оптимізації. Крім того, CVaR може використовуватися як техніка пом'якшення помилок для покращення якості оцінки значення цільової функції [4].
Вимоги
Перед початком цього підручника переконайтеся, що у Вас встановлено наступне:
- Qiskit SDK v2.0 або пізніше, з підтримкою візуалізації
- Qiskit Runtime v0.43 або пізніше (
pip install qiskit-ibm-runtime) - Rustworkx бібліотека графів (
pip install rustworkx) - Python SAT (
pip install python-sat)
Налаштування
# Added by doQumentation — required packages for this notebook
!pip install -q matplotlib numpy python-sat qiskit qiskit-ibm-runtime rustworkx scipy
from __future__ import annotations
import numpy as np
import rustworkx as rx
from dataclasses import dataclass
from itertools import combinations
from threading import Timer
from collections.abc import Callable, Iterable
from pysat.formula import CNF, IDPool
from pysat.solvers import Solver
from scipy.optimize import minimize
from rustworkx.visualization import mpl_draw as draw_graph
from qiskit.quantum_info import SparsePauliOp
from qiskit.circuit.library import QAOAAnsatz
from qiskit.circuit import QuantumCircuit, ParameterVector
from qiskit.transpiler import CouplingMap, PassManager
from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager
from qiskit.transpiler.passes.routing.commuting_2q_gate_routing import (
SwapStrategy,
FindCommutingPauliEvolutions,
Commuting2qGateRouter,
)
from qiskit_ibm_runtime import QiskitRuntimeService, Session
from qiskit_ibm_runtime import SamplerV2 as Sampler
Задача Max-Cut
Розглянемо розв'язування задачі Max-Cut на графі з 100 вузлами за допомогою QAOA. Задача Max-Cut є комбінаторною задачею оптимізації, яка визначена на графі , де є множиною вершин, а є множиною ребер. Метою є розбиття вершин на дві множини, і , таким чином, щоб кількість ребер між двома множинами була максимізована. У цьому прикладі ми використовуємо граф з 100 вузлами, який базується на карті з'єднань апаратного забезпечення.
Крок 1: Відображення класичних входів на квантову задачу
Граф → Гамільтоніан
Спочатку відобразіть задачу на квантову схему, яка підходить для QAOA. Детальну інформацію про цей процес можна знайти у вступному підручнику QAOA.
# Instantiate runtime to access backend
service = QiskitRuntimeService()
backend = service.least_busy(
min_num_qubits=100, operational=True, simulator=False
)
print(backend)
<IBMBackend('ibm_fez')>
backend.coupling_map.is_symmetric
True
n = 100
graph_100 = rx.PyGraph()
graph_100.add_nodes_from((np.arange(0, n, 1)))
w = 1.0
elist = []
for edge in backend.coupling_map:
if (edge[0] < n) and (edge[1] < n):
if (edge[1], edge[0], w) not in elist:
elist.append((edge[0], edge[1], w))
graph_100.add_edges_from(elist)
draw_graph(graph_100, with_labels=True)
# Construct cost hamiltonian
def build_max_cut_paulis(graph: rx.PyGraph) -> list[tuple[str, float]]:
"""Convert the graph to Pauli list.
This function does the inverse of `build_max_cut_graph`
"""
pauli_list = []
for edge in list(graph.edge_list()):
paulis = ["I"] * len(graph)
paulis[edge[0]], paulis[edge[1]] = "Z", "Z"
weight = graph.get_edge_data(edge[0], edge[1])
pauli_list.append(("".join(paulis)[::-1], weight))
return pauli_list
max_cut_paulis = build_max_cut_paulis(graph_100)
cost_hamiltonian = SparsePauliOp.from_list(max_cut_paulis)
print("Cost Function Hamiltonian:", cost_hamiltonian)
Cost Function Hamiltonian: SparsePauliOp(['IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZ', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZI', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII'],
coeffs=[1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j])
Крок 2: Оптимізація задачі для виконання на квантовому апаратному забезпеченні
Стратегія SWAP з початковим відображенням SAT
Ми продемонструємо, як будувати та оптимізувати схеми QAOA, використовуючи стратегію SWAP з початковим відображенням SAT, спеціально розроблений транспілерний прохід для QAOA, застосований до квадратичних задач.
У цьому прикладі ми обираємо стратегію вставки SWAP для блоків комутуючих двокубітних вентилів, яка застосовує шари вентилів SWAP, що одночасно виконуються на карті зв'язків. Ця стратегія представлена у [1] і передається в Commuting2qGateRouter, який представлений як стандартизований транспілерний прохід Qiskit (див. Commuting2qGateRouter). У цьому прикладі ми використовуємо лінійну стратегію swap.
# Extract longest path with no repeated nodes
nodes = rx.longest_simple_path(graph_100)
# Collect even edges and odd edges
even_edges = [
(nodes[i], nodes[i + 1])
if nodes[i] < nodes[i + 1]
else (nodes[i + 1], nodes[i])
for i in range(0, len(nodes) - 1, 2)
]
odd_edges = [
(nodes[i], nodes[i + 1])
if nodes[i] < nodes[i + 1]
else (nodes[i + 1], nodes[i])
for i in range(1, len(nodes) - 1, 2)
]
edge_list = [
(edge[0], edge[1]) if edge[0] < edge[1] else (edge[1], edge[0])
for edge in graph_100.edge_list()
]
swap_strategy = SwapStrategy(CouplingMap(edge_list), (even_edges, odd_edges))
Переприв'язка графа за допомогою SAT-маппера
Навіть коли схема складається з комутуючих вентилів (це стосується схеми QAOA, а також троттерізованих симуляцій гамільтоніанів Ізінга), знаходження хорошого початкового відображення є складною задачею. Підхід на основі SAT, представлений у [2], дозволяє виявляти ефективні початкові відображення для схем з комутуючими вентилями, що призводить до значного зменшення кількості необхідних шар ів SWAP. Було продемонстровано, що цей підхід масштабується до 500 кубітів, як показано у статті.
Наступний код демонструє, як використовувати SATMapper від Matsuo та ін. для переприв'язки графа. Цей процес дозволяє відобразити задачу на більш оптимальний початковий стан для вказаної стратегії SWAP, що призводить до значного зменшення кількості шарів SWAP, необхідних для виконання схеми.
У SATMapper задача пошуку хорошого початкового відображення формулюється як задача SAT. Для знаходження такого початкового відображення для схеми QAOA використовується SAT-розв'язувач. python-sat (pysat для стислості) — це бібліотека Python для SAT-розв'язувача, і ми будемо використовувати її для розв'язання задачі SAT у цьому прикладі.
"""A class to solve the SWAP gate insertion initial mapping problem
using the SAT approach from https://arxiv.org/abs/2212.05666.
"""
@dataclass
class SATResult:
"""A data class to hold the result of a SAT solver."""
satisfiable: bool # Satisfiable is True if the SAT model could be solved
# in a given time.
solution: dict # The solution to the SAT problem if it is satisfiable.
mapping: list # The mapping of nodes in the pattern graph to nodes in the
# target graph.
elapsed_time: float # The time it took to solve the SAT model.
class SATMapper:
r"""A class to introduce a SAT-approach to solve
the initial mapping problem in SWAP gate insertion for commuting gates.
When this pass is run on a DAG it will look for the first instance of
:class:`.Commuting2qBlock` and use the program graph :math:`P` of this block
of gates to find a layout for a given swap strategy. This layout is found
with a binary search over the layers :math:`l` of the swap strategy. At each
considered layer a subgraph isomorphism problem formulated as a SAT is solved
by a SAT solver. Each instance is whether it is possible to embed the program
graph :math:`P` into the effective connectivity graph :math:`C_l` that is
achieved by applying :math:`l` layers of the swap strategy to the coupling map
:math:`C_0` of the backend. Since solving SAT problems can be hard, a
``time_out`` fixes the maximum time allotted to the SAT solver for each
instance. If this time is exceeded the considered problem is deemed
unsatisfiable and the binary search proceeds to the next number of swap
layers :math:``l``.
"""
def __init__(self, timeout: int = 60):
"""Initialize the SATMapping.
Args:
timeout: The allowed time in seconds for each iteration of the SAT
solver. This variable defaults to 60 seconds.
"""
self.timeout = timeout
def find_initial_mappings(
self,
program_graph: rx.Graph,
swap_strategy: SwapStrategy,
min_layers: int | None = None,
max_layers: int | None = None,
) -> dict[int, SATResult]:
r"""Find an initial mapping for a given swap strategy. Perform a
binary search over the number of swap layers, and for each number
of swap layers solve a subgraph isomorphism problem formulated as
a SAT problem.
Args:
program_graph (rx.Graph): The program graph with commuting gates, where
each edge represents a two-qubit gate.
swap_strategy (SwapStrategy): The swap strategy to use to find the
initial mapping.
min_layers (int): The minimum number of swap layers to consider.
Defaults to the maximum degree of the
program graph - 2.
max_layers (int): The maximum number of swap layers to consider.
Defaults to the number of qubits in the
swap strategy - 2.
Returns:
dict[int, SATResult]: A dictionary containing the results of the SAT
solver for each number of swap layers.
"""
num_nodes_g1 = len(program_graph.nodes())
num_nodes_g2 = swap_strategy.distance_matrix.shape[0]
if num_nodes_g1 > num_nodes_g2:
return SATResult(False, [], [], 0)
if min_layers is None:
# use the maximum degree of the program graph - 2
# as the lower bound.
min_layers = max((d for _, d in program_graph.degree)) - 2
if max_layers is None:
max_layers = num_nodes_g2 - 1
variable_pool = IDPool(start_from=1)
variables = np.array(
[
[variable_pool.id(f"v_{i}_{j}") for j in range(num_nodes_g2)]
for i in range(num_nodes_g1)
],
dtype=int,
)
vid2mapping = {v: idx for idx, v in np.ndenumerate(variables)}
binary_search_results = {}
def interrupt(solver):
# This function is called to interrupt the solver when the
# timeout is reached.
solver.interrupt()
# Make a cnf (conjunctive normal form) for the one-to-one
# mapping constraint
cnf1 = []
for i in range(num_nodes_g1):
clause = variables[i, :].tolist()
cnf1.append(clause)
for k, m in combinations(clause, 2):
cnf1.append([-1 * k, -1 * m])
for j in range(num_nodes_g2):
clause = variables[:, j].tolist()
for k, m in combinations(clause, 2):
cnf1.append([-1 * k, -1 * m])
# Perform a binary search over the number of swap layers to find the
# minimum number of swap layers that satisfies the subgraph isomorphism
# problem.
while min_layers < max_layers:
num_layers = (min_layers + max_layers) // 2
# Create the connectivity matrix. Note that if the swap strategy
# cannot reach full connectivity then its distance matrix will have
# entries with -1. These entries must be treated as False.
d_matrix = swap_strategy.distance_matrix
connectivity_matrix = (
(-1 < d_matrix) & (d_matrix <= num_layers)
).astype(int)
# Make a cnf for the adjacency constraint
cnf2 = []
for e_0, e_1 in list(program_graph.edge_list()):
clause_matrix = np.multiply(
connectivity_matrix, variables[e_1, :]
)
clause = np.concatenate(
(
[[-variables[e_0, i]] for i in range(num_nodes_g2)],
clause_matrix,
),
axis=1,
)
# Remove 0s from each clause
cnf2.extend([c[c != 0].tolist() for c in clause])
cnf = CNF(from_clauses=cnf1 + cnf2)
with Solver(bootstrap_with=cnf, use_timer=True) as solver:
# Solve the SAT problem with a timeout.
# Timer is used to interrupt the solver when the
# timeout is reached.
timer = Timer(self.timeout, interrupt, [solver])
timer.start()
status = solver.solve_limited(expect_interrupt=True)
timer.cancel()
# Get the solution and the elapsed time.
sol = solver.get_model()
e_time = solver.time()
print(
f"Layers: {num_layers}, Status: {status}, Time: {e_time}"
)
if status:
# If the SAT problem is satisfiable, convert the solution
# to a mapping.
mapping = [vid2mapping[idx] for idx in sol if idx > 0]
binary_search_results[num_layers] = SATResult(
status, sol, mapping, e_time
)
max_layers = num_layers
else:
# If the SAT problem is unsatisfiable, return the last
# satisfiable solution.
binary_search_results[num_layers] = SATResult(
status, sol, [], e_time
)
min_layers = num_layers + 1
return binary_search_results
def remap_graph_with_sat(
self, graph: rx.Graph, swap_strategy, max_layers
):
"""Applies the SAT mapping.
Args:
graph (nx.Graph): The graph to remap.
swap_strategy (SwapStrategy): The swap strategy to use
to find the initial mapping.
Returns:
tuple: A tuple containing the remapped graph, the edge map, and the
number of layers of the swap strategy that was used to find the
initial mapping. If no solution is found then the tuple contains
None for each element. Note the returned edge map `{k: v}` means that
node `k` in the original graph gets mapped to node `v` in the
Pauli strings.
"""
num_nodes = len(graph.nodes())
results = self.find_initial_mappings(
graph, swap_strategy, 0, max_layers
)
solutions = [k for k, v in results.items() if v.satisfiable]
if len(solutions):
min_k = min(solutions)
edge_map = dict(results[min_k].mapping)
# Create the remapped graph
remapped_graph = rx.PyGraph()
remapped_graph.add_nodes_from(range(num_nodes))
mapping = dict(results[min_k].mapping)
for i, graph_edge in enumerate(list(graph.edge_list())):
remapped_edge = tuple(mapping[node] for node in graph_edge)
remapped_graph.add_edge(*remapped_edge, graph.edges()[i])
return remapped_graph, edge_map, min_k
else:
return None, None, None
sm = SATMapper(timeout=10)
remapped_graph, edge_map, min_swap_layers = sm.remap_graph_with_sat(
graph=graph_100, swap_strategy=swap_strategy, max_layers=1
)
print("Map from old to new nodes: ", edge_map)
print("Min SWAP layers:", min_swap_layers)
draw_graph(remapped_graph, node_size=200, with_labels=True, width=1)
Layers: 0, Status: True, Time: 0.022812999999999306
Map from old to new nodes: {0: 0, 1: 1, 2: 2, 3: 3, 4: 4, 5: 5, 6: 6, 7: 7, 8: 8, 9: 9, 10: 10, 11: 11, 12: 12, 13: 13, 14: 14, 15: 15, 16: 16, 17: 17, 18: 18, 19: 19, 20: 20, 21: 21, 22: 22, 23: 23, 24: 24, 25: 25, 26: 26, 27: 27, 28: 28, 29: 29, 30: 30, 31: 31, 32: 32, 33: 33, 34: 34, 35: 35, 36: 36, 37: 37, 38: 38, 39: 39, 40: 40, 41: 41, 42: 42, 43: 43, 44: 44, 45: 45, 46: 46, 47: 47, 48: 48, 49: 49, 50: 50, 51: 51, 52: 52, 53: 53, 54: 54, 55: 55, 56: 56, 57: 57, 58: 58, 59: 59, 60: 60, 61: 61, 62: 62, 63: 63, 64: 64, 65: 65, 66: 66, 67: 67, 68: 68, 69: 69, 70: 70, 71: 71, 72: 72, 73: 73, 74: 74, 75: 75, 76: 76, 77: 77, 78: 78, 79: 79, 80: 80, 81: 81, 82: 82, 83: 83, 84: 84, 85: 85, 86: 86, 87: 87, 88: 88, 89: 89, 90: 90, 91: 91, 92: 92, 93: 93, 94: 94, 95: 95, 96: 96, 97: 97, 98: 98, 99: 99}
Min SWAP layers: 0
remapped_max_cut_paulis = build_max_cut_paulis(remapped_graph)
# define a qiskit SparsePauliOp from the list of paulis
remapped_cost_operator = SparsePauliOp.from_list(remapped_max_cut_paulis)
print(remapped_cost_operator)
SparsePauliOp(['IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZ', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZI', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII'],
coeffs=[1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
1.+0.j, 1.+0.j, 1.+0.j])
Побудова схеми QAOA зі стратегією SWAP та відображенням SAT
Ми хочемо застосувати стратегії SWAP лише до шару оператора вартості, тому починаємо зі створення ізольованого блоку, який ми пізніше трансформуємо та додамо до фінальної схеми QAOA.
Для цього ми можемо використовувати клас QAOAAnsatz з Qiskit. Ми вводимо порожню схему в поля initial_state та mixer_operator, щоб переконатися, що ми будуємо ізольований шар оператора вартості.
Ми також визначаємо карту розфарбовування ребер (edge_coloring map), щоб вентилі RZZ були розташовані поруч з вентилями SWAP. Це стратегічне розміщення дозволяє нам використовувати скорочення CX, оптимізуючи схему для кращої продуктивності.
Цей процес виконується всередині функції create_qaoa_swap_circuit.
def make_meas_map(circuit: QuantumCircuit) -> dict:
"""Return a mapping from qubit index (the key) to classical bit (the value).
This allows us to account for the swapping order introduced by the SWAP strategy.
"""
creg = circuit.cregs[0]
qreg = circuit.qregs[0]
meas_map = {}
for inst in circuit.data:
if inst.operation.name == "measure":
meas_map[qreg.index(inst.qubits[0])] = creg.index(inst.clbits[0])
return meas_map
def apply_swap_strategy(
circuit: QuantumCircuit,
swap_strategy: SwapStrategy,
edge_coloring: dict[tuple[int, int], int] | None = None,
) -> QuantumCircuit:
"""Transpile with a SWAP strategy.
Returns:
A quantum circuit transpiled with the given swap strategy.
"""
pm_pre = PassManager(
[
FindCommutingPauliEvolutions(),
Commuting2qGateRouter(
swap_strategy,
edge_coloring,
),
]
)
return pm_pre.run(circuit)
def apply_qaoa_layers(
cost_layer: QuantumCircuit,
meas_map: dict,
num_layers: int,
gamma: list[float] | ParameterVector = None,
beta: list[float] | ParameterVector = None,
initial_state: QuantumCircuit = None,
mixer: QuantumCircuit = None,
):
"""Applies QAOA layers to construct circuit.
First, the initial state is applied. If `initial_state` is None, we begin in the
initial superposition state. Next, we alternate between layers of the cost operator
and the mixer. The cost operator is alternatively applied in order and in reverse
instruction order. This allows us to apply the swap strategy on odd `p` layers
and undo the swap strategy on even `p` layers.
"""
num_qubits = cost_layer.num_qubits
new_circuit = QuantumCircuit(num_qubits, num_qubits)
if initial_state is not None:
new_circuit.append(initial_state, range(num_qubits))
else:
# all h state by default
new_circuit.h(range(num_qubits))
if gamma is None or beta is None:
gamma = ParameterVector("γ'", num_layers)
if mixer is None or mixer.num_parameters == 0:
beta = ParameterVector("β'", num_layers)
else:
beta = ParameterVector("β'", num_layers * mixer.num_parameters)
if mixer is not None:
mixer_layer = mixer
else:
mixer_layer = QuantumCircuit(num_qubits)
mixer_layer.rx(-2 * beta[0], range(num_qubits))
for layer in range(num_layers):
bind_dict = {cost_layer.parameters[0]: gamma[layer]}
cost_layer_ = cost_layer.assign_parameters(bind_dict)
bind_dict = {
mixer_layer.parameters[i]: beta[layer + i]
for i in range(mixer_layer.num_parameters)
}
layer_mixer = mixer_layer.assign_parameters(bind_dict)
if layer % 2 == 0:
new_circuit.append(cost_layer_, range(num_qubits))
else:
new_circuit.append(cost_layer_.reverse_ops(), range(num_qubits))
new_circuit.append(layer_mixer, range(num_qubits))
for qidx, cidx in meas_map.items():
new_circuit.measure(qidx, cidx)
return new_circuit
def create_qaoa_swap_circuit(
cost_operator: SparsePauliOp,
swap_strategy: SwapStrategy,
edge_coloring: dict = None,
theta: list[float] = None,
qaoa_layers: int = 1,
initial_state: QuantumCircuit = None,
mixer: QuantumCircuit = None,
):
"""Create the circuit for QAOA.
Notes: This circuit construction for QAOA works for quadratic terms in `Z` and will be
extended to first-order terms in `Z`. Higher-orders are not supported.
Args:
cost_operator: the cost operator.
swap_strategy: selected swap strategy
edge_coloring: A coloring of edges that should correspond to the coupling
map of the hardware. It defines the order in which we apply the Rzz
gates. This allows us to choose an ordering such that `Rzz` gates will
immediately precede SWAP gates to leverage CNOT cancellation.
theta: The QAOA angles.
qaoa_layers: The number of layers of the cost operator and the mixer operator.
initial_state: The initial state on which we apply layers of cost operator
and mixer.
mixer: The QAOA mixer. It will be applied as is onto the QAOA circuit. Therefore,
its output must have the same ordering of qubits as its input.
"""
num_qubits = cost_operator.num_qubits
if theta is not None:
gamma = theta[: len(theta) // 2]
beta = theta[len(theta) // 2 :]
qaoa_layers = len(theta) // 2
else:
gamma = beta = None
# First, create the ansatz of one layer of QAOA without mixer
cost_layer = QAOAAnsatz(
cost_operator,
reps=1,
initial_state=QuantumCircuit(num_qubits),
mixer_operator=QuantumCircuit(num_qubits),
).decompose()
# This will allow us to recover the permutation of the measurements that the swaps introduce.
cost_layer.measure_all()
# Now, apply the swap strategy for commuting gates
cost_layer = apply_swap_strategy(cost_layer, swap_strategy, edge_coloring)
# Compute the measurement map (qubit to classical bit).
# We will apply this for odd layers where the swaps were inserted.
if qaoa_layers % 2 == 1:
meas_map = make_meas_map(cost_layer)
else:
meas_map = {idx: idx for idx in range(num_qubits)}
cost_layer.remove_final_measurements()
# Finally, introduce the mixer circuit and add measurements following measurement map
circuit = apply_qaoa_layers(
cost_layer, meas_map, qaoa_layers, gamma, beta, initial_state, mixer
)
return circuit
# We can define the edge_coloring map so that RZZ gates are positioned right before SWAP gates to exploit CX cancellations
# We use greedy edge coloring from rustworkx to color the edges of the graph. This coloring is used to order the RZZ gates in the circuit.
edge_coloring_idx = rx.graph_greedy_edge_color(graph_100)
edge_coloring = {
edge: edge_coloring_idx[idx]
for idx, edge in enumerate(list(graph_100.edge_list()))
}
edge_coloring = {tuple(sorted(k)): v for k, v in edge_coloring.items()}
qaoa_circ = create_qaoa_swap_circuit(
remapped_cost_operator,
swap_strategy,
edge_coloring=edge_coloring,
qaoa_layers=1,
)

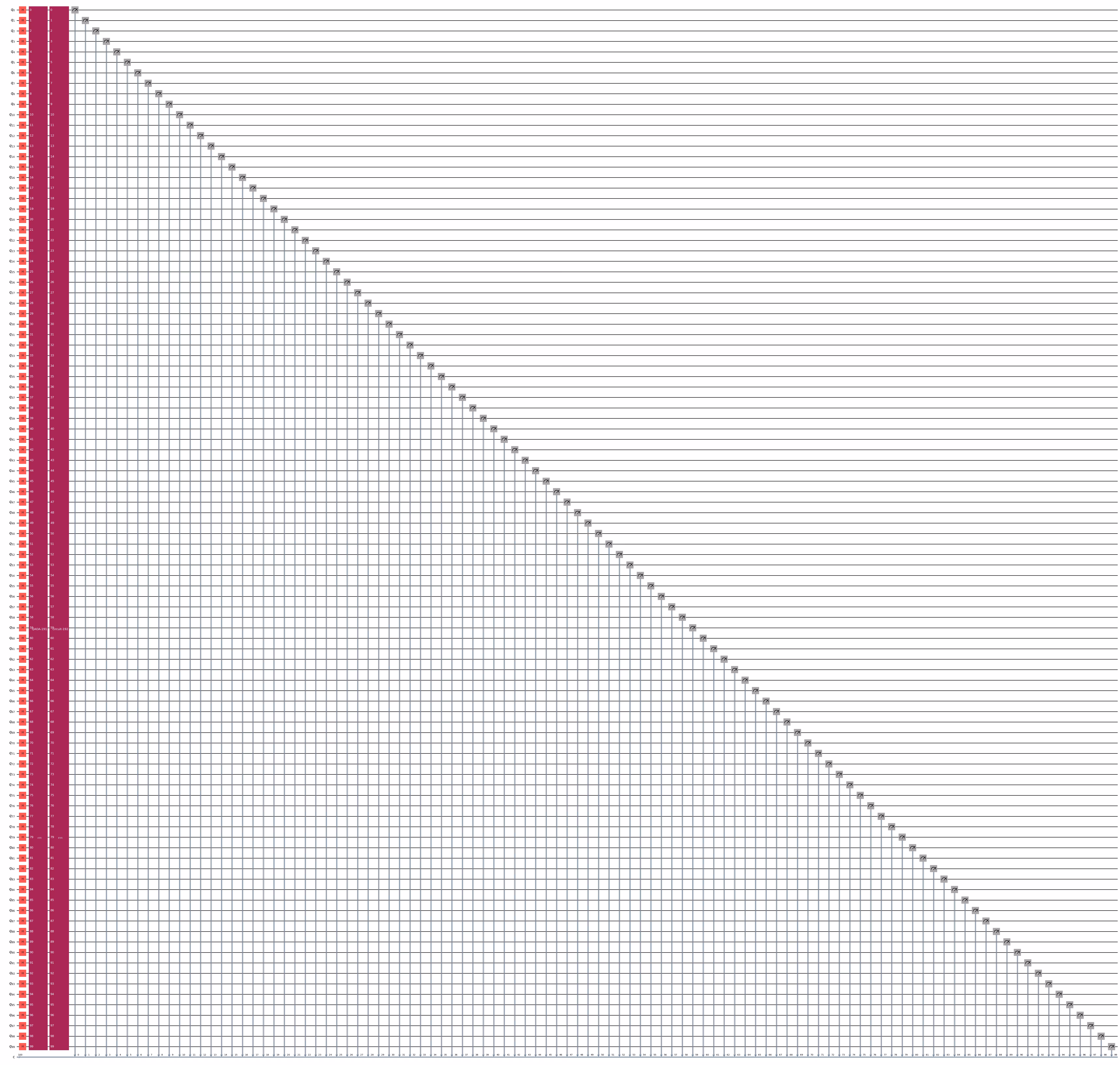

qaoa_circ.draw(output="mpl", fold=False)
/Users/mirko/Workspace/documentation/.venv/lib/python3.13/site-packages/qiskit/circuit/quantumcircuit.py:4625: UserWarning: Trying to add QuantumRegister to a QuantumCircuit having a layout
circ.add_register(qreg)
Крок 3: Виконання за допомогою примітивів Qiskit
Визначення функції вартості CVaR
Цей приклад показує, як використовувати функцію вартості Conditional Value at Risk (CVaR), представлену в [3], в рамках варіаційних квантових алгоритмів оптимізації.
CVaR випадкової величини для рівня довіри визначається як де є оберненою функцією кумулятивного розподілу . Іншими словами, CVaR — це очікуване значення нижнього -хвоста розподілу .
pass_manager = generate_preset_pass_manager(
backend=backend,
optimization_level=3,
)
transpiled_qaoa_circ = pass_manager.run(qaoa_circ)
# Utility functions for the evaluation of the expectation value of a measured state
# In this code, for optimization, the measured state is converted into a bit string,
# and the sign of the value is determined by taking the exclusive OR of the bits
# corresponding to Pauli Z.
_PARITY = np.array(
[-1 if bin(i).count("1") % 2 else 1 for i in range(256)],
dtype=np.complex128,
)
def evaluate_sparse_pauli(state: int, observable: SparsePauliOp) -> complex:
"""Utility for the evaluation of the expectation value of a measured state.
Args:
state (int): The measured state.
observable (SparsePauliOp): The observable to evaluate the expectation value for.
Returns:
complex: The expectation value of the measured state.
"""
packed_uint8 = np.packbits(
observable.paulis.z, axis=1, bitorder="little"
) # convert observable to array with 8 bit integer
state_bytes = np.frombuffer(
state.to_bytes(packed_uint8.shape[1], "little"),
dtype=np.uint8, # convert bitstring to array with 8 bit integer
)
reduced = np.bitwise_xor.reduce(
packed_uint8 & state_bytes, axis=1
) # take bitwise xor of the result of 'and' conditional on the above two, return 0 or 1
return np.sum(observable.coeffs * _PARITY[reduced])
def qaoa_sampler_cost_fun(
params, ansatz, hamiltonian, sampler, aggregation=None
):
"""Standard sampler-based QAOA cost function to be plugged into optimizer routines.
Args:
params (np.ndarray): Parameters for the ansatz.
ansatz (QuantumCircuit): Ansatz circuit.
hamiltonian (SparsePauliOp): Hamiltonian to be minimized.
sampler (QAOASampler): Sampler to be used.
aggregation (Callable | float | None): Aggregation function to be applied to
the sampled results. If None, the sum of the expectation values is returned.
If float, the CVaR with the given alpha is used.
"""
# Run the circuit
job = sampler.run([(ansatz, params)])
sampler_result = job.result()
sampled_int_counts = sampler_result[
0
].data.c.get_int_counts() # bitstrings are stored as integers
shots = sum(sampled_int_counts.values())
int_count_distribution = {
key: val / shots for key, val in sampled_int_counts.items()
}
# a dictionary containing: {state: (measurement probability, value)}
evaluated = {
state: (
probability,
np.real(evaluate_sparse_pauli(state, hamiltonian)),
)
for state, probability in int_count_distribution.items()
}
# If aggregation is None, return the sum of the expectation values.
# If aggregation is a float, return the CVaR with the given alpha.
# Otherwise, use the aggregation function.
if aggregation is None:
result = sum(
probability * value for probability, value in evaluated.values()
)
elif isinstance(aggregation, float):
cvar_aggregation = _get_cvar_aggregation(aggregation)
result = cvar_aggregation(evaluated.values())
else:
result = aggregation(evaluated.values())
global iter_counts, result_dict
iter_counts += 1
temp_dict = {}
temp_dict["params"] = params.tolist()
temp_dict["cvar_fval"] = result
temp_dict["fval"] = sum(
probability * value for probability, value in evaluated.values()
)
temp_dict["distribution"] = sampled_int_counts
temp_dict["evaluated"] = evaluated
result_dict[iter_counts] = temp_dict
print(f"Iteration {iter_counts}: {result}")
return result
def _get_cvar_aggregation(alpha: float | None) -> Callable:
"""Return the CVaR aggregation function with the given alpha.
Args:
alpha (float | None): Alpha value for the CVaR aggregation. If None, 1 is used
by default.
Raises:
ValueError: If alpha is not in [0, 1].
"""
if alpha is None:
alpha = 1
elif not 0 <= alpha <= 1:
raise ValueError(f"alpha must be in [0, 1], but {alpha} was given.")
def cvar_aggregation(
objective_dict: Iterable[tuple[float, float]],
) -> float:
"""Return the CVaR of the given measurements.
Args:
objective_dict (Iterable[tuple[float, float]]): An iterable of tuples containing
the measured bit string and the objective value based on the bit string.
"""
sorted_measurements = sorted(objective_dict, key=lambda x: x[1])
# accumulate the probabilities until alpha is reached
accumulated_percent = 0.0
cvar = 0.0
for probability, value in sorted_measurements:
cvar += value * min(probability, alpha - accumulated_percent)
accumulated_percent += probability
if accumulated_percent >= alpha:
break
return cvar / alpha
return cvar_aggregation
CVaR може бути використаний як техніка пом'якшення помилок, як обговорювалося раніше [4]. У цьому прикладі ми визначаємо та кількість вимірювань відповідно до коефіцієнта помилок схеми.
num_2q_ops = transpiled_qaoa_circ.count_ops()[
"cz"
] # the two qubit gates on our backend are cz's.
for el in backend.properties().general:
if el.name[:2] == "lf" and el.name[3:] == str(
n
): # pick out lf_100, lf of the best 100q chain
lf = el.value # layer fidelity
print("layer fidelity", lf)
eplg = 1 - lf ** (1 / (n - 1)) # error per layered gate (EPLG)
fid_cz = 1 - eplg
gamma_cz = 1 / fid_cz**2
gamma_circ = gamma_cz**num_2q_ops
cvar_aggregation = 1 / np.sqrt(gamma_circ)
print("")
print("The corresponding CVaR aggregation value is: ", cvar_aggregation)
print(
"To mitigate the twirled noise, increase shots by a factor of",
np.sqrt(gamma_circ),
)
layer fidelity 0.5454643821399414
The corresponding CVaR aggregation value is: 0.2568730767702702
To mitigate the twirled noise, increase shots by a factor of 3.8929731857197782
iter_counts = 0
result_dict = {}
init_params = [np.pi, np.pi / 2]
with Session(backend=backend) as session:
sampler = Sampler(mode=session)
sampler.options.default_shots = int(1000 / cvar_aggregation)
sampler.options.dynamical_decoupling.enable = True
sampler.options.dynamical_decoupling.sequence_type = "XY4"
sampler.options.twirling.enable_gates = True
sampler.options.twirling.enable_measure = True
result = minimize(
qaoa_sampler_cost_fun,
init_params,
args=(
transpiled_qaoa_circ,
remapped_cost_operator,
sampler,
cvar_aggregation,
),
method="COBYLA",
tol=1e-2,
)
print(result)
Iteration 1: -13.227556797094595
Iteration 2: -13.181545294899571
Iteration 3: -13.149537293372594
Iteration 4: -3.305576300816324
Iteration 5: -12.647411769418035
Iteration 6: -13.443610807401718
Iteration 7: -12.475368761210511
Iteration 8: -15.905726329447413
Iteration 9: -18.011752834505565
Iteration 10: -14.125781339945583
Iteration 11: -19.693673319331744
Iteration 12: -21.175543794613695
Iteration 13: -21.805701324676196
Iteration 14: -22.121280244318488
Iteration 15: -20.02575633517435
Iteration 16: -22.399349757584158
Iteration 17: -22.569392265696226
Iteration 18: -21.877719328111898
Iteration 19: -22.79144777628963
Iteration 20: -22.437359259397432
Iteration 21: -23.021505287264777
Iteration 22: -22.69742427180412
Iteration 23: -23.12553129222746
Iteration 24: -22.893473281156922
message: Return from COBYLA because the trust region radius reaches its lower bound.
success: True
status: 0
fun: -23.12553129222746
x: [ 2.766e+00 1.080e+00]
nfev: 24
maxcv: 0.0
Крок 4: Постобробка та повернення результату в бажаному класичному форматі
from matplotlib import pyplot as plt
plt.figure(figsize=(12, 6))
plt.plot(
[result_dict[i]["cvar_fval"] for i in range(1, iter_counts + 1)],
label="CVaR",
)
plt.plot(
[result_dict[i]["fval"] for i in range(1, iter_counts + 1)],
label="Standard",
)
plt.legend()
plt.xlabel("Iteration")
plt.ylabel("Cost")
plt.show()
Наступний код отримує найкраще рішення з вибраних бітових рядків
# sort the result_dict[iter_counts]['evaluated'] by the CVaR value
sorted_result_dict = [
(k, v)
for k, v in sorted(
result_dict[iter_counts]["evaluated"].items(),
key=lambda item: item[1][1],
)
]
print(
f"bitstring (int): {sorted_result_dict[0][0]}, probability: {sorted_result_dict[0][1][0]}, objective value: {sorted_result_dict[0][1][1]}"
)
bitstring (int): 283561207335785714592526814041, probability: 0.00025693730729701953, objective value: -43.0
Розглянемо гамільтоніан для задачі Max-Cut. Нехай кожна вершина графа асоціюється з кубітом у стані або , де значення позначає множину, до якої належить вершина. Метою задачі є максимізація кількості ребер , для яких і , або навпаки. Якщо ми асоціюємо оператор з кожним кубітом, де
тоді ребро належить до розрізу, якщо власне значення ; іншими словами, кубіти, асоційовані з та , відрізняються. Аналогічно, не належить до р озрізу, якщо власне значення
from typing import Sequence
def to_bitstring(integer, num_bits):
result = np.binary_repr(integer, width=num_bits)
return [int(digit) for digit in result]
def evaluate_sample(x: Sequence[int], graph: rx.PyGraph) -> float:
assert len(x) == len(
list(graph.nodes())
), "The length of x must coincide with the number of nodes in the graph."
return sum(
x[u] * (1 - x[v])
+ x[v]
* (
1 - x[u]
) # x[u] = x[v] if same cut, x[u] \neq x[v] if different cuts
for u, v in list(graph.edge_list())
)
bitstring = to_bitstring(
sorted_result_dict[0][0], len(list(remapped_graph.nodes()))
)
bitstring = bitstring[::-1]
print(f"Result bitstring (binary) : {bitstring}")
cut_value = evaluate_sample(bitstring, remapped_graph)
print(f"The value of the cut is: {cut_value}")
Result bitstring (binary) : [1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0]
The value of the cut is: 77
Нарешті, давайте намалюємо граф на основі результату CVaR. Ми розбиваємо вузли графа на дві множини на основі результату CVaR. Вузли у першій множині пофарбовані в сірий колір, а вузли у другій множині пофарбовані у фіолетовий. Ребра між двома множинами — це ребра, які розрізані розбиттям.
def plot_result(G, x):
colors = ["tab:grey" if i == 0 else "tab:purple" for i in x]
pos, _default_axes = rx.spring_layout(G), plt.axes(frameon=True)
rx.visualization.mpl_draw(
G,
node_color=colors,
node_size=150,
alpha=0.8,
pos=pos,
with_labels=True,
width=1,
)
plot_result(graph_100, to_bitstring(sorted_result_dict[0][0], 100)[::-1])
Посилання
[1] Weidenfeller, J., Valor, L. C., Gacon, J., Tornow, C., Bello, L., Woerner, S., & Egger, D. J. (2022). Scaling of the quantum approximate optimization algorithm on superconducting qubit based hardware. Quantum, 6, 870.
[2] Matsuo, A., Yamashita, S., & Egger, D. J. (2023). A SAT approach to the initial mapping problem in SWAP gate insertion for commuting gates. IEICE Transactions on Fundamentals of Electronics, Communications and Computer Sciences, 106(11), 1424-1431.
[3] Barkoutsos, P. K., Nannicini, G., Robert, A., Tavernelli, I., & Woerner, S. (2020). Improving variational quantum optimization using CVaR. Quantum, 4, 256.
[4] Barron, S. V., Egger, D. J., Pelofske, E., Bärtschi, A., Eidenbenz, S., Lehmkuehler, M., & Woerner, S. (2023). Provable bounds for noise-free expectation values computed from noisy samples. arXiv preprint arXiv:2312.00733.
Опитування щодо посібника
Будь ласка, приділіть одну хвилину, щоб надати відгук про цей посібник. Ваші думки допоможуть нам покращити наш контент та взаємодію з користувачами.
